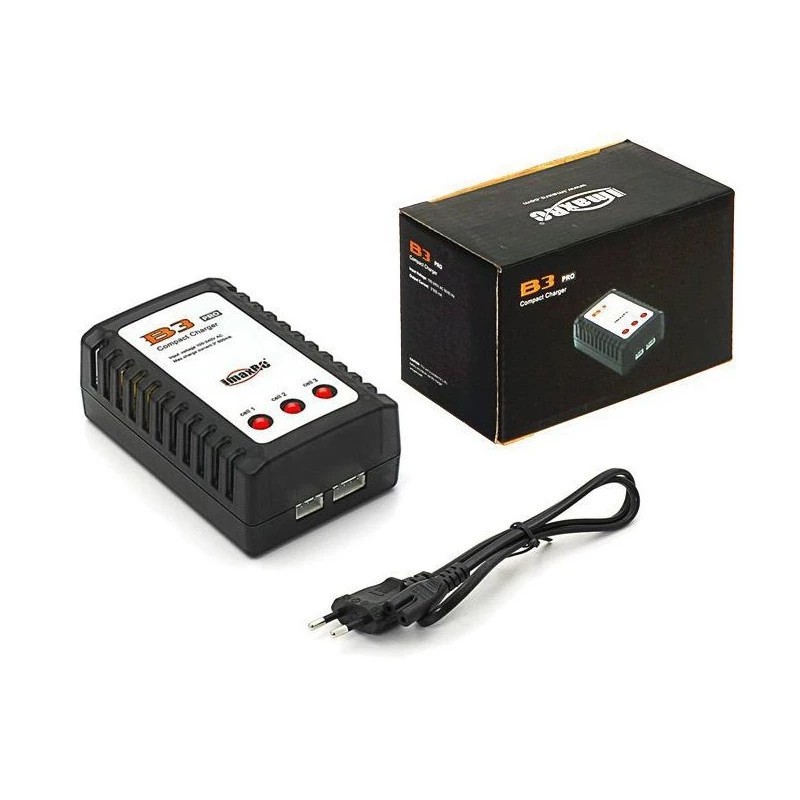

The IMAX B3 10W LiPo Balance Charger is a compact all-in-one charging station for LiPo, NiMH, and NiCd battery packs. Designed for hobbyists and field use, it features a simple one-touch interface with an LED indicator for each cell during balance charging. With 10W of power output, the B3 supports 2S and 3S LiPo balance charging up to 0.5A, as well as charging and discharging functions for NiMH/NiCd packs (1–12 cells) at selectable currents.

Equipped with a built-in balance port and banana-plug connectors, the charger ensures each cell is charged evenly, preventing overcharge and extending battery life. Its intelligent circuit automatically adjusts charging current based on pack voltage and cell count. The sturdy ABS housing with ventilation slots provides cooling during extended cycles, while reverse polarity and over-temperature protection safeguard both batteries and the charger itself.

The intuitive interface consists of a two-button control and a three-color LED system: red for charging, green for fully charged, and blue for balancing mode. A mini-USB port allows firmware updates and PC monitoring via optional software. The IMAX B3 supports input voltages from 11–18V DC, making it compatible with standard 12V field power supplies or 12V car batteries.

Whether you need to balance-charge your 3S LiPo pack between skirmishes or maintain NiMH cells at home, the IMAX B3 10W LiPo Balance Charger delivers reliable, safe charging performance in a portable package.

Technical Specifications

  • Input Voltage: 11–18V DC
  • Max Power: 10W
  • LiPo Charging: 2S/3S balance at 0.1–0.5A
  • NiMH/NiCd Charging: 1–12 cells at 0.1–1.0A
  • Balance Port: Built-in 2S/3S balance connector
  • Connectors: Banana plugs for main leads
  • Display: Three-color LEDs (red/green/blue)
  • Dimensions: 95 × 60 × 25 mm (approx.)
  • Weight: ≈120 g
  • Safety: Reverse polarity, over-temperature protection
  • Firmware: User-updatable via mini-USB

Key Advantages

  • Compact and lightweight for field or workshop use
  • Built-in balance port ensures even cell charging and extended LiPo lifespan
  • Supports both LiPo (2S/3S) and NiMH/NiCd (1–12 cells) charging modes
  • Simple two-button interface with clear LED status indicators
  • Intelligent charging circuitry automatically adjusts current
  • Safety features include reverse polarity and over-temperature shutdown
  • Compatible with 12V DC supplies, including car battery or field pack
  • Firmware upgradable for future enhancements and PC monitoring
