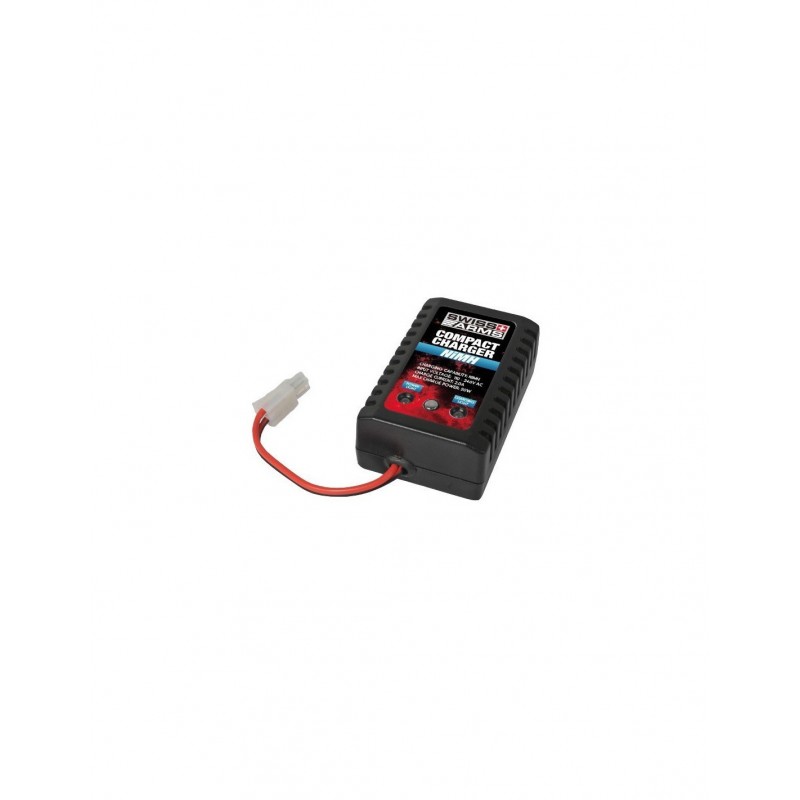

Swiss Arms NiMH Battery Charger 8.4/9.6 V

The Swiss Arms NiMH Battery Charger 8.4/9.6 V is a versatile charging station designed to safely recharge nickel-metal hydride (NiMH) battery packs for airsoft, RC models, and other hobby applications. Its compact, lightweight design makes it ideal for field, workshop, or home use. The charger features two LED indicators to display charging status: a red LED for charging and a green LED for fully charged. Simply connect a 8.4 V (7-cell) or 9.6 V (8-cell) NiMH battery pack using the supplied DC input cable, and the charger automatically provides a safe, regulated current to prevent overcharging and extend battery life.

Equipped with a European plug and compatible with 100–240 V AC input, the Swiss Arms charger can be used worldwide with an appropriate adapter. It delivers a constant 8.4 V output with a maximum charge current of 500 mA for 7-cell packs, and 9.6 V output with 500 mA for 8-cell packs. The charger’s intelligent charging circuit monitors battery voltage and temperature, automatically switching to trickle charge mode when batteries reach full capacity to maintain optimal condition without risk of damage.

Robust and reliable, the Swiss Arms NiMH Battery Charger includes built-in safety features such as short-circuit protection, reverse polarity protection, and over-temperature shutdown. The non-slip rubber feet keep it stable on any surface, while ventilation slots ensure efficient heat dissipation during extended charging cycles. With an input power cord length of approximately 1.2 meters, users have ample flexibility to position the charger near power outlets or workstations.

Whether you need to charge your airsoft rifle packs before a skirmish or keep your RC vehicle batteries topped up between races, the Swiss Arms NiMH Battery Charger 8.4/9.6 V provides a reliable, user-friendly solution to keep your equipment powered and ready.

Technical Specifications

• Input Voltage: 100–240 V AC, 50/60 Hz
• Output Voltage: 8.4 V ± 0.1 V (7-cell NiMH), 9.6 V ± 0.1 V (8-cell NiMH)
• Charge Current: 500 mA constant
• Supported Battery: NiMH 7-cell (8.4 V) and 8-cell (9.6 V) packs
• Efficiency: ≥ 80%
• Indicators: Red LED (charging), Green LED (fully charged/trickle charge)
• Safety Features: Short-circuit protection, reverse polarity protection, over-temperature shutdown
• Operating Temperature: 0 °C to +40 °C
• Dimensions: 120 × 60 × 40 mm (approx.)
• Weight: ≈180 g
• AC Power Cord Length: ≈1.2 m

Key Advantages

• Dual-voltage support for 8.4 V and 9.6 V NiMH packs, ideal for a wide range of hobby batteries
• Intelligent charging circuit prevents overcharge and automatically switches to trickle charge
• LED indicators clearly display charging status at a glance
• Global AC input compatibility (100–240 V) with built-in safety protections
• Compact, portable design with non-slip feet and ventilation slots for durability
• Reliable safety features including short-circuit, reverse polarity, and over-temperature protection
